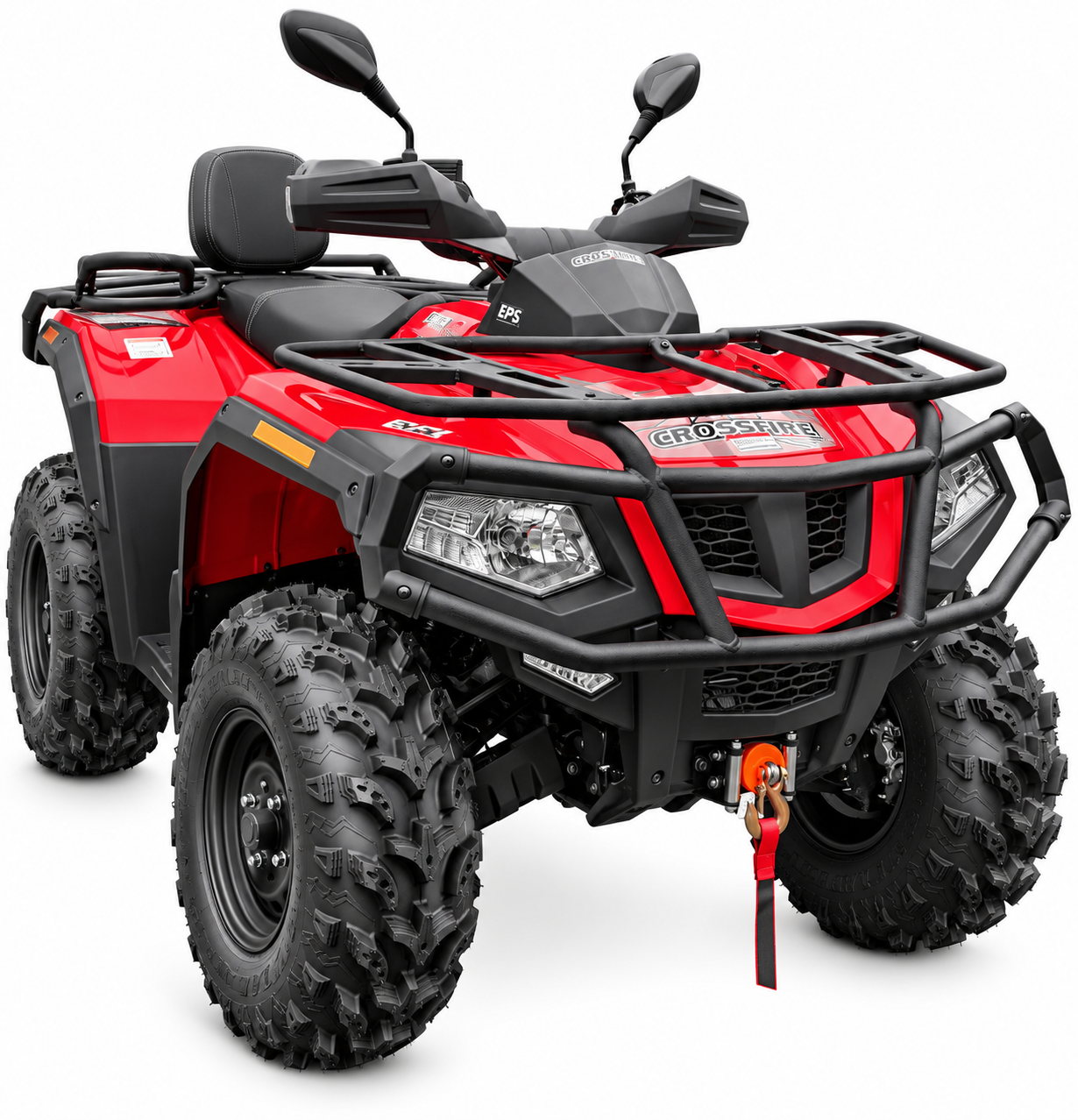

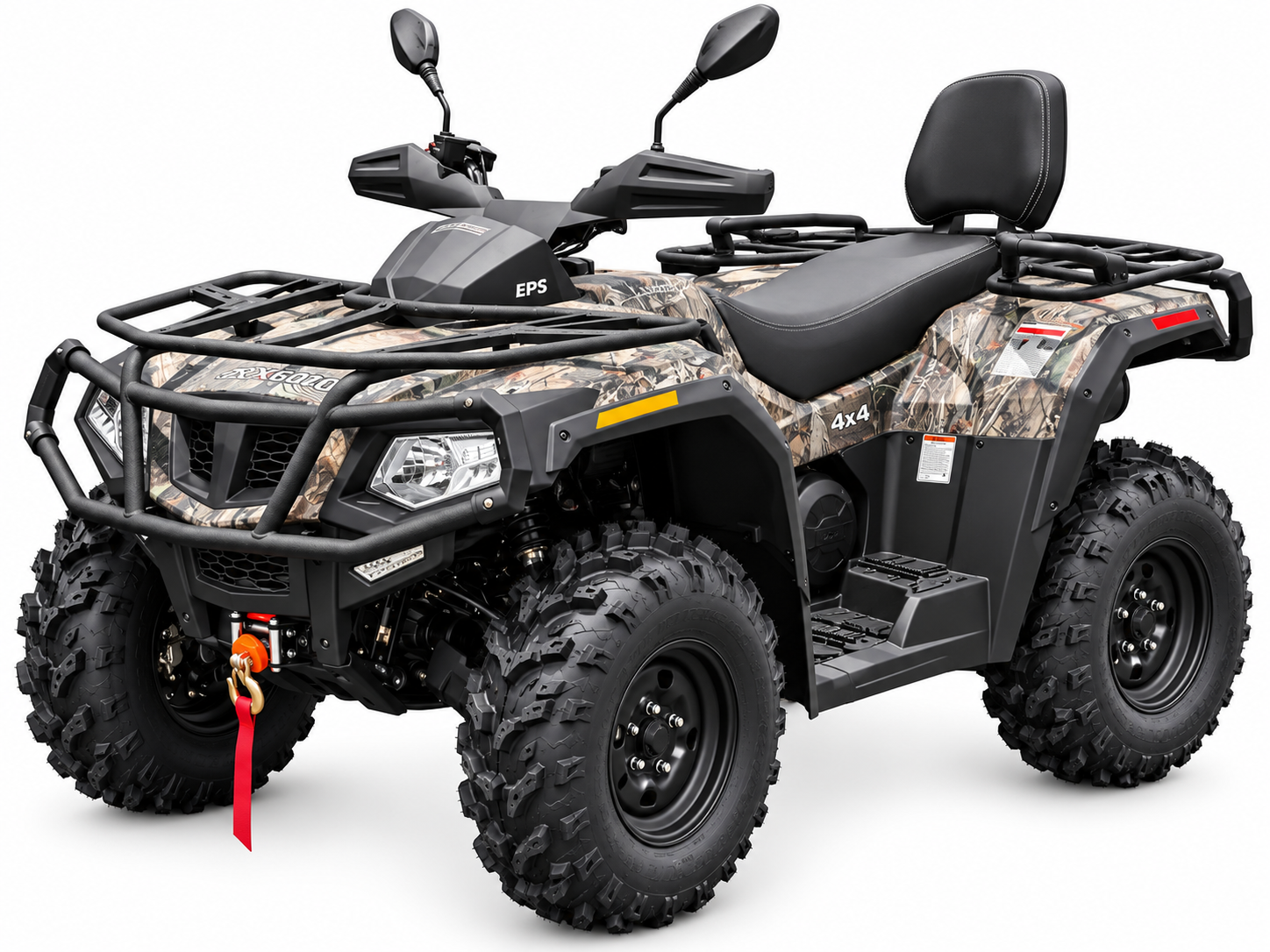

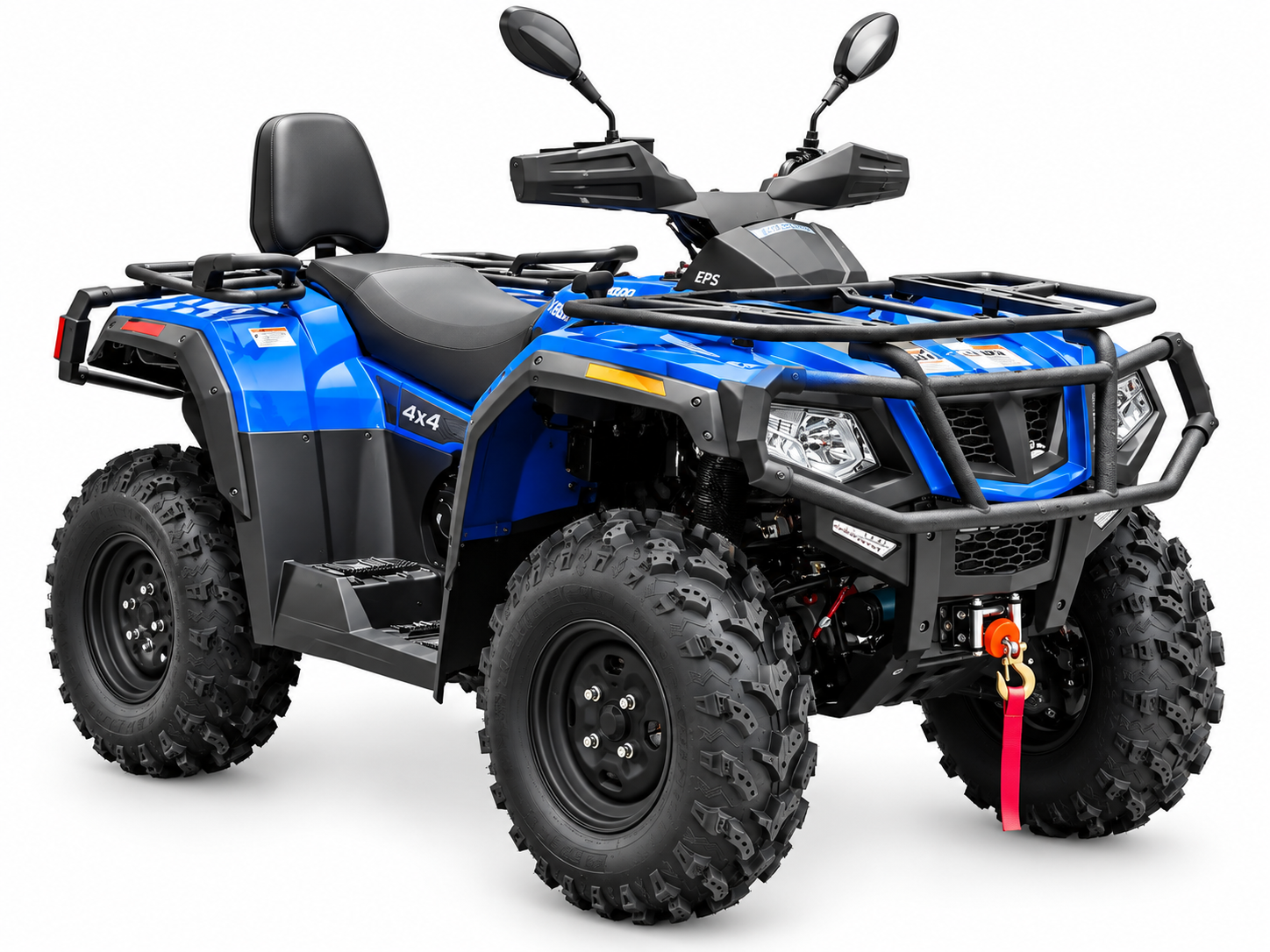

Crossfire X600 546cc 4WD Farm ATV Quad Bike

$9,989.00

546cc EFI • Selectable 4WD • Electric Power Steering • Automatic CVT • 2,500lb Winch

The Crossfire X600 is a full-size 4WD farm ATV built for everyday property work, from checking fences to towing equipment around the farm. With selectable 4WD, high and low range, electric power steering and front and rear cargo racks, it's a practical option for getting jobs done.

WRC Ready to Ride

The price you see includes freight to Western Rural Centre, professional assembly and pre-delivery preparation, ready for collection from our Lucknow store.

Available to order

Supplier availability and lead times may vary.

546cc EFI • Selectable 4WD • Electric Power Steering • Automatic CVT • 2,500lb Winch

The Crossfire X600 is a full-size 4WD farm ATV built for everyday property work, from checking fences to towing equipment around the farm. With selectable 4WD, high and low range, electric power steering and front and rear cargo racks, it's a practical option for getting jobs done.

WRC Ready to Ride

The price you see includes freight to Western Rural Centre, professional assembly and pre-delivery preparation, ready for collection from our Lucknow store.

Available to order

Supplier availability and lead times may vary.

Color:

Key Features

  • 546cc liquid-cooled, fuel-injected 4-stroke engine producing 30HP.

  • Selectable 2WD and 4WD shaft drive with differential lock for challenging terrain.

  • Electric Power Steering (EPS) for easier handling and reduced steering effort.

  • Fully automatic CVT transmission with high and low range, neutral, reverse and park.

  • Heavy-duty front and rear cargo racks for carrying tools and farm supplies.

  • Factory-fitted 2,500lb (approximately 1,100kg) electric winch and tow hitch.

  • Independent dual A-arm suspension front and rear with nitrogen-assisted hydraulic shocks.

  • Front dual-disc and rear disc brakes with 25-inch off-road tyres.

  • 17L fuel tank, 930mm seat height and 279mm ground clearance.

  • Quad Bar Flexi operator protection device supplied and fitted by the dealer before collection.

Technical Specifications

ENGINE & DRIVETRAIN

Engine4-stroke SOHC
Displacement546cc
Maximum Power30 HP @ 6000rpm
Maximum Torque40 Nm @ 5000rpm
Drive2WD / 4WD Shaft
CoolingLiquid
Fuel SystemEFI
Starting SystemElectric
IgnitionECU
TransmissionCVT L-H-N-R-P
ClutchWet multi-plate
Compression Ratio9.5:1
Bore x Stroke91 x 84 mm
Fuel Capacity17 L

SUSPENSION, BRAKES & TYRES

Front SuspensionDual A-Arm, hydraulic with nitrogen assist
Rear SuspensionDual A-Arm, hydraulic with nitrogen assist
Front BrakesDual disc
Rear BrakesDisc
Rims12" steel
Front Tyres25 x 8-12
Rear Tyres25 x 10-12

DIMENSIONS & CAPACITIES

Overall Dimensions (L x W x H)2286 x 1193 x 1384 mm
Wheelbase1447 mm
Seat Height930 mm
Ground Clearance279 mm
Empty Vehicle Weight390 kg
Maximum Rider & Cargo Weight288 kg
Towing Capacity544 kg inc. rider (manufacturer wording)

UTILITY EQUIPMENT

Winch1100 kg
Cargo RacksFront & rear
Power SteeringElectronic Power Steering (EPS)
Drive SelectionSelectable 2WD / 4WD
Differential LockFront differential lock
Operator ProtectionQuad Bar Flexi, dealer fitted
